Square rechargeable battery

ShenZhen Boying Energy Co.,Ltd

Box type rechargeable battery model and specification table

(I) Related instructions of BY nickel metal hydride battery:

1. The battery rated capacity is 25℃ plus or minus 2℃ ambient temperature, with 0.1C constant current charging battery and electricity, to 0.2C received constant exile electric capacity.

2. Standard battery charging: charging with 0.2c current constant current. Quick charging: charging with 1C current constant current.

(Ⅱ) the prefix ni-mh stands for nickel-metal hydride battery, the prefix li-ion stands for lithium battery, and the prefix l-low self stands for discharging cell

BY Model	Standards	V(Volt)	mAh	mm（Dimension)			G（Wt)
			Capacity	Height	Width	Thickness
				Height	Width	Thickness
Ni-MH20F	1/3F6S	1.2	220mAh	20	15.5	6.3	6.00
Ni-MH22F	1/3F6S	1.2	250mAh	22.5	15.5	6.3	6.50
Ni-MH22F	1/3F6S	1.2	300mAh	22.5	15.5	6.3	7.00
Ni-MH33F	3/5F6S	1.2	400mAh	33.5	15.5	6.3	10.00
Ni-MH33F	3/5F6S	1.2	500mAh	33.5	15.5	6.3	11.00
Ni-MH36F	4/5F6	1.2	500mAh	36	16.7	5.8	13.00
Ni-MHF6	F6	1.2	700mAh	47	16.7	5.8	16.00
Ni-MHF6	F6	1.2	800mAh	47	16.7	5.8	18.00
Ni-MH67F6	7/5F6	1.2	1100mAh	67	16.7	5.8	25.00

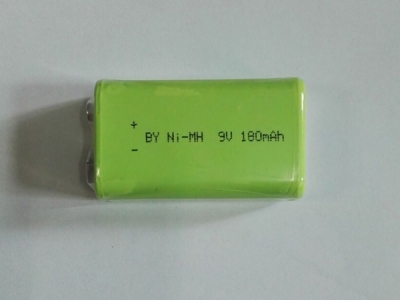

Ni-MH	L9V	8.4	120	48.5	26.4	17.5/16.4	28.00
Ni-MH	L9V	8.4	150	48.5	26.4	17.5/16.4	33.00
Ni-MH	L9V	8.4	180	48.5	26.4	17.5/16.4	37.00
Ni-MH	L9V	8.4	200	48.5	26.4	17.5/16.4	39.00
Ni-MH	L9V	8.4	220	48.5	26.4	17.5/16.4	48.00
Ni-MH	L9V	8.4	250	48.5	26.4	17.5/16.4	52.00
Ni-MH	L9V	8.4	280	48.5	26.4	17.5/16.4	55.00
Ni-MH	L9V	8.4	300	48.5	26.4	17.5/16.4	55.00
Ni-MH	L9V	8.4	350	48.5	26.4	17.5/16.4	57.00
Li-ion	L9V	8.4	450	48.5	26.4	17.5/16.4	50.00
Li-ion	L9V	8.4	600	48.5	26.4	17.5/16.4	60.00
